SPG系列管道屏蔽泵
分享到:

SPG系列管道屏蔽泵

名 称 SPG系列管道屏蔽泵
型 号 SPG
口 径 40~300 mm
流 量 5.3~720 m3/h
扬程 10~125 M
产品材质 铸铁、不锈钢
可输送介质 清水、油、酸液、碱液
适用行业 建筑工程化工水利工程消防灌溉
产品详情

一、产品概述

   SPG完全不泄露屏蔽泵管道泵,经我们科技人员消化革新,新推出的屏蔽泵新品,在原有基础上改进电磁核心技术,改善了流体运动状态,提高效率10%以上,综合性能指标都上了一个台阶,产品也更加理想。

   SPG屏蔽泵是一种电动机和泵体一体化结构的水泵,只有静止密封(而不是旋转的轴密封),所以能做到完全无泄露。因其电机自身低噪音,加之屏蔽泵低故障率,高可靠性能,和维护成本低等优点赢得广大用户的欢迎,也增强了对中国市场高品质水泵的需求。



二、产品用途

    产品广泛应用在石油、化学工业,医药、纺织、核电、军工及城市给排水,消防增压,高层建筑增压送水,园林喷灌,暖通制冷,等冷暖水循环增压。特别是对振动、噪音要求高的场所,如重点工程、泵房、中央空调等等。还可以用来输送压力和温度不产生结晶和凝固的液体,特别是对人体及环境有害的和不安全的液体和贵重液体等,如强腐蚀性,剧毒性,挥发性,放射性等介质。

三、型号意义


性能参数:


型号流量Q扬程H效率η转速n电机功率必需汽蚀余量重量
(m3/h)(L/s)(m)(%)(r/min)(kw)(m)(kg)
PBG40-1006.31.7512.55414500.553.532
PBG40-100A5.61.56105214500.373.532
PBG40-1256.31.75204614501.13.534
PBG40-125A5.61.56164529000.753.533
PBG40-1606.31.75324029002.23.547
PBG40-160A5.91.64283929001.53.543
PBG40-160B5.51.53243829001.13.538
PBG40-2006.31.755033290043.574
PBG40-200A5.91.644431290033.562
PBG40-200B5.31.47362929002.23.552
PBG40-2506.31.75802829007.53.5105
PBG40-250A5.91.64702829005.53.598
PBG40-250B5.51.536027290043.577
PBG40-100(I)12.53.4712.56214501.13.534
PBG40-100(I)A113.05106014500.753.531
PBG40-125(I)12.53.47205814501.53.538
PBG40-125(I)A113.05165714501.13.533
PBG40-160(I)12.53.473252290033.556
PBG40-160(I)A11.73.25285129002.23.547
PBG40-160(I)B10.42.89225029001.53.543
PBG40-200(I)12.53.47504629005.53.585
PBG40-200(I)A11.73.254445290043.575
PBG40-200(I)B10.62.943644290033.563
PBG40-250(I)12.53.4780382900113.5145
PBG40-250(I)A11.63.22703829007.53.595
PBG40-250(I)B10.83603729007.53.594
PBG40-250(I)C102.78523629005.53.588
PBG50-10012.53.4712.56214501.13.536
PBG50-100A113.05106014500.753.535
PBG50-12512.53.47205814501.53.543
PBG50-125A113.05165714501.13.538
PBG50-16012.53.473252290033.559
PBG50-160A11.73.25285129002.23.551
PBG50-160B10.42.89225029001.53.547
PBG50-20012.53.47504629005.53.5101
PBG50-200A11.73.254445290043.580
PBG50-200B10.62.943644290033.568
PBG50-25012.53.4780382900113.5160
PBG50-250A11.63.22703829007.53.5115
PBG50-250B10.83603729007.53.5114
PBG50-250C102.78523629005.53.5108
PBG50-100(I)256.9412.56914501.53.841
PBG50-100(I)A22.36.19106714501.13.836
PBG50-125(I)256.942068145033.856
PBG50-125(I)A22.36.49166614502.23.848
PBG50-160(I)256.943263145043.872
PBG50-160(I)A23.46.52862145043.871
PBG50-160(I)B21.662458145033.859
PBG50-200(I)256.94505829007.53.8108
PBG50-200(I)A23.56.53445729007.53.8107
PBG50-200(I)B21.86.06385529005.53.8100
PBG50-250(I)256.9480502900153.8175
PBG50-250(I)A23.46.570502900113.8165
PBG50-250(I)B21.6660482900113.8165
PBG50-315(I)256.94125402900303.8310
PBG50-315(I)A23.76.58113402900223.8245
PBG50-315(I)B22.56.2510139290018.53.8215
PBG50-315(I)C20.65.7285382900153.8195
PBG65-100256.9412.56914501.23.846
PBG65-100A22.36.19106714501.13.841
PBG65-125256.942068145033.858
PBG65-125A22.36.19166614502.23.849
PBG65-160256.943263145043.875
PBG65-160A23.46.52862145043.875
PBG65-160B21.662458145033.863
PBG65-200256.94505829007.53.8107
PBG65-200A23.56.53445729007.53.8107
PBG65-200B21.86.06385529005.53.8100
PBG65-250256.9480502900153.8180
PBG65-250A23.46.570502900113.8170
PBG65-250B21.6660492900113.8170
PBG65-315256.94125402900303.8320
PBG65-315A23.76.58113402900223.8255
PBG65-315B22.56.2510139290018.53.8225
PBG65-315C20.65.728538290015.53.8205
PBG65-100(I)5013.912.573145034.263
PBG65-100(I)A44.712.5107214502.24.253
PBG65-125(I)5013.92072.514505.54.299
PBG65-125(I)A4512.51671145044.278
PBG65-160(I)5013.9327114507.54.2103
PBG65-160(I)A46.713287014507.54.2103
PBG65-160(I)B43.312246914505.54.297
PBG65-200(I)5013.950672900154.2176
PBG65-200(I)A4713.144662900114.2166
PBG65-200(I)B43.512.1386529007.54.2114
PBG65-250(I)5013.980592900224.2235
PBG65-250(I)A46.7137059290018.54.2205
PBG65-250(I)B43.31260582900154.2180
PBG65-315(I)5013.9125542900344.2350
PBG65-315(I)A46.512.9110542900304.2355
PBG65-315(I)B44.512.4100532900304.2335
PBG65-315(I)C4111.485512900224.2270
PBG80-1005013.973145034.263
PBG80-100A44.712.4107214502.24.254


安装尺寸:



1-3.pngSPG型泵外形及安装尺寸

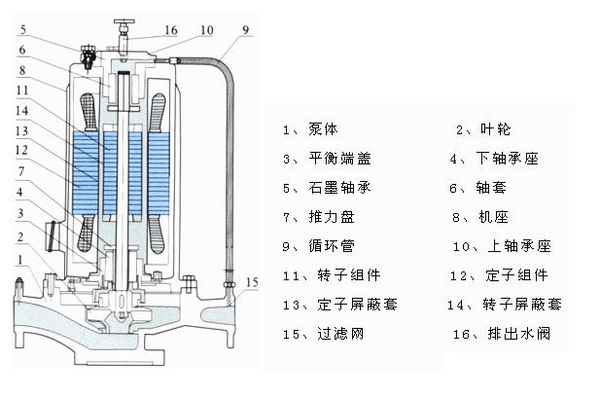

SPG系列管道屏蔽泵(结构图)
